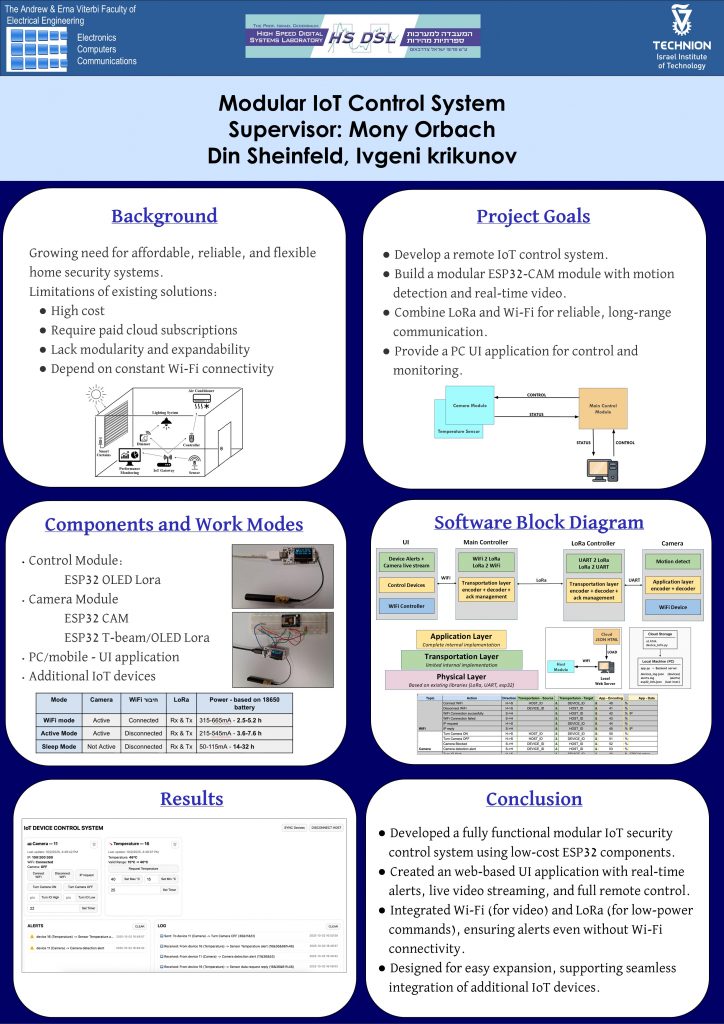

Project presents a modular IoT control system that integrates ESP32 microcontrollers with Wi-Fi and LoRa communication to enable real-time monitoring, long-range control, and reliable alert transmission. It provides a flexible, low-cost, and scalable platform for remote security management through an intuitive web-based interface.
The Modular IoT Control System project aims to design and implement a cost-effective, scalable, and reliable home security platform based on ESP32 microcontrollers. The system combines Wi-Fi and LoRa communication technologies to achieve both easy to access interfacem long-range data transmission and low-power control capabilities. Wi-Fi connectivity allows real-time video streaming and seamless user interaction through a Python and HTML-based web interface, while LoRa ensures continuous transmission of alerts and control messages even during network interruptions.

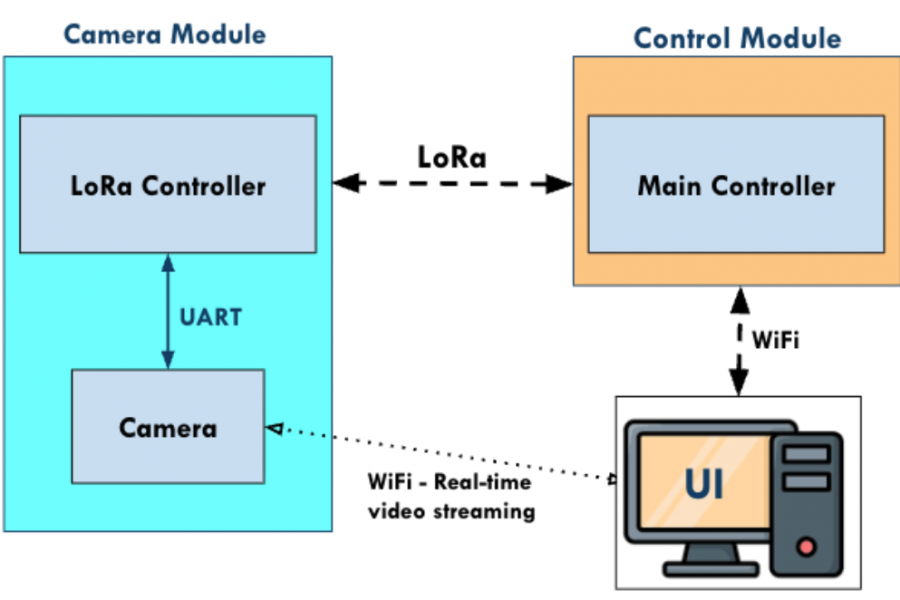

The architecture follows a layered and modular design, consisting of three primary components: the Host Control Module, multiple IoT devices (such as camera and temperature sensors), and a user interface. The Host serves as the system’s central coordinator, managing synchronization, command routing, and communication between devices and the UI. Each device is independently addressable and can be dynamically added or removed without modifying the existing system configuration.
Reliability and fault tolerance are key aspects of the implementation. The system employs ack-based communication to guarantee message delivery across devices and includes mechanisms for command parsing, validation, and synchronization between all modules. Power management was optimized for the ESP32-CAM—by addressing brownout conditions and implementing multiple operating modes to balance functionality and battery life.
Overall, the project demonstrates that open-source tools and affordable hardware can be combined to create a flexible IoT security solution. It successfully integrates hardware, software, and communication layers into a unified control system that supports future expansion with minimal cost and configuration effort.
